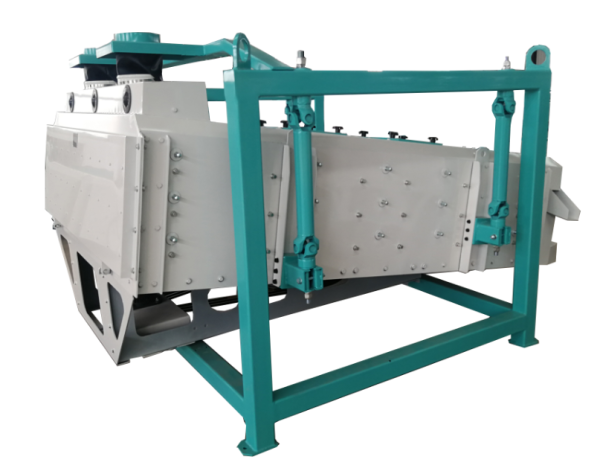

Vibration Separator is suitable for cleaning granule materials and widely used in grain processing industries.
Capacity 30t/h to 200t/h available.
It equipped with screens with different holes, different types of materials can be cleaned.
Working Principle
Since the eccentric drive device of the machine is at the center of the machine, the entire screen body can be rotated in a horizontal plane, so that all parts on the screen surface can obtain the same screening effect. The machine is simple in transmission. Only one belt connects the pulley on the eccentric drive device with the pulley of the drive motor. The rotating vibration frequency is 300 rpm. The screen frame with cleaning balls allows the screen to be effectively cleaned, thus ensuring the screening efficiency and screening quality.
Technical Parameter
| Model | Sieve Dimension | Capacity(fine cleaning-pre cleaning) | Power(kw) | Overall Size(mm) | Weight(KW) | Remark |
| TXZS150×200 | 150×200 | 40-70 | 3 | 3360×2198× 1900 | 2370 | 2LAYER |
| TXZS150×200 | 150×200 | 40-70 | 3 | 3360×2198× 2020 | 2560 | 3LAYER |
| TXZS180×250 | 180×250 | 50-120 | 4 | 3860× 2310 ×1900 | 3100 | 2LAYER |
| TXZS180×250 | 180×250 | 50-120 | 4 | 3860× 2310 ×2020 | 3300 | 3LAYER |
| TXZS200×250 | 200×250 | 60-140 | 4 | 3860× 2710× 1950 | 3420 | 2LAYER |
| TXZS200×250 | 200×250 | 60-140 | 4 | 3860× 2710× 2050 | 3620 | 3LAYER |
| TXZSB156/300 | 150×300 | 60-100 | 5.5 | 3965 ×2280× 3100 | 3600 | 6 LAYER ,3-3 |
| TXZSA156/300 | 150×300 | 70-150 | 5.5 | 3965 ×2280 ×3100 | 3600 |
6 LAYER ,2-2-2
|
