Ningbo Vicks Hydraulic Co., Ltd
Ningbo Vicks Hydraulic Co., Ltd is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo motor, Yunshen servo motor, Haitain drive and Sumitomo pump.
Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high quality, high efficiency, low consumption, safety. Ningbo Vicks Hydraulic Co., Ltd has became a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy saving.

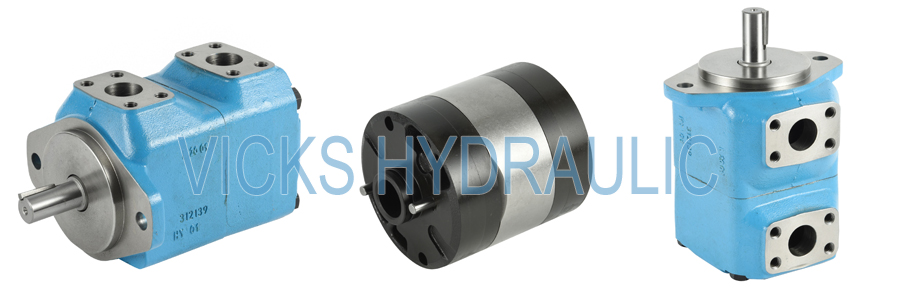

High Performance Intra vane Pumps for plastic injection machinery, Tool machinery, Die casting machinery and Metallurgy equipment. Suitable for various medium and high pressure hydraulic system, such as fishing oat trawlers, ship windlasses, winches, engineeing machinery etc.
Features
The speed range is wide, the noise is low, it can be forward and reverse, and the action is sensitive. Radial hydraulic balance, so the working pressure is high, the service life is long, and it has the characteristics of small size, light weight, simple structures, convenient use and maintenance.
| 25M | 65 | A | -11 | C | 20 | |||
| Series | ml/r Displacement | Port connections | Shaft type | Outlet positions | Design No. | |||
| Standard bearing | 25M | Heavy-duty bearings | 26M | 42, 55, 65 | SAE 2 SAE 4 2-bolt mounting flange and 4- bolt flange connection | 1- Straight key shaft 11- Spline shaft | (Viewed from cover end of pump) A- Oppsite inlet B- 90º CCW from inlet C- Inline with inlet D- 90º CW from inlet | 20-29 |
| 35M | 36M | 80, 95, 115 | ||||||
| 45M | 46M | 130, 155, 185 | ||||||
| 50M | 51M | 220, 255, 300 | ||||||

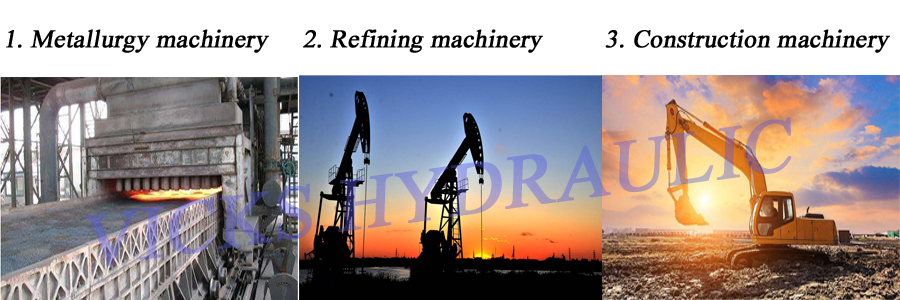

Application

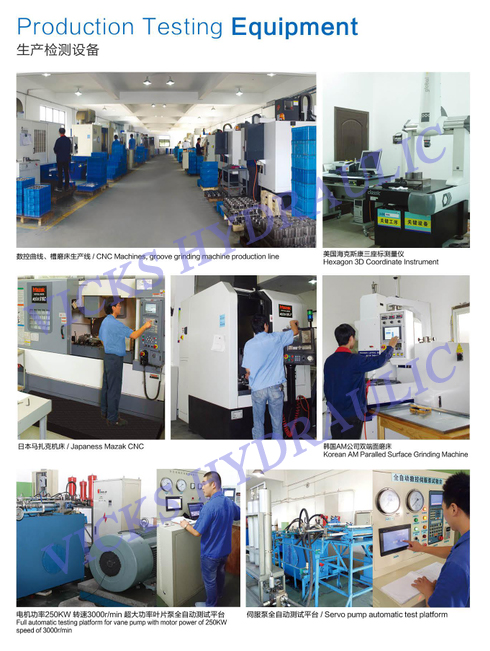

Advanced Equipment
