Information and advantages About UV Printing on Wood

UV printing on wood?

Yes, that’s right! This is an advanced wood processing technology that uses UV inkjet technology to print patterns on the surface of wood. It has the advantages of bright colors, high precision, waterproof and anti-fouling, and environmental protection etc.

Advantages of UV Printing

Bright Colors

Bright Colors

UV printing technology can print very delicate and bright colors on the wood surface, it brings the effects of which normal water printing base could not achieve. Besides of that, UV ink has various colors options and could perfectly present the tiny details and colors of traditional art and modern design.

High processing precision

High Precision

UV printing technology uses high-precision print head, which can print very delicate patterns on the wood material, and can also print from various angles. Compared with traditional production processing and hand-painting, it is more delicate and can achieve perfect effect.

Waterproof and anti-fouling

Waterproof and anti-fouling

After UV printing, a protective layer could be formed on the surface of the print wood to get the effect of the waterproof and anti-fouling, it makes the print wood to be more durable. This technology is suitable for the production of home decoration and the commercial advertisement industry.

environmentally friendly

Environmental Protection

UV ink adopts the principle of chemiluminescence, which could be quickly cured by the ultraviolet rays, and will not create any harmful substances or volatile organic compounds. That is why it is environmental protective, and also meets the requirements of environmental protection standards.

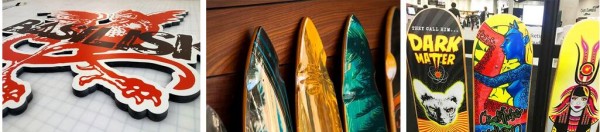

Application Areas & Specific Uses

UV2513-UV Printing On Wood

2513

Product Parameters

Model Type UV2513
Nozzle configuration Ricoh GEN61-8 Ricoh GEN5 1-8
Area of platform 2500mmx1300mm  25kg
Print speed Ricoh G6 fast 6 heads    production 75m²/h                 Ricoh G6 Four nozzle     production 40m²/h
Print material Type:Acrylic aluminum plastic board,wood, tile, foam board, metal plate, glass,cardboard and other plane objects
Ink type Blue, magenta, yellow, black, light blue, light red, white, light oil
RIP software PP,PF,CG,Ultraprint;
power supply voltage,power AC220v, hosts the largest 3000w, 1500wX2 vacuum adsorption platform
lmage format TiffJEPG,Postscript3,EPS,PDF/Etc.
Color control In line with international ICC standard, with curve and density adjustment function, using ltalian Barbieri color system for color calibration
Print resolution 720*1200dpi,720*900dpi,720*600dpi,720*300dpi
operating environment Temperature: 20C to 28 C humidity: 40% to 60%
Apply the ink Ricoh and LED-UV ink
The machine size 4520mmX2240mm X1400mm 1200KG
Packing size 4620mmX2340mm X1410mm 1400KG

Processing Steps

Requirements & Design

Communicate with customer to get client’s purpose and get proper design, including sizes, colors, presentation styles and other requirements, then carry it out with final artwork.

Choose Wood Material

According to the requirement and the design, collect the proper wood material, usually solid wood board or wood-based board would also be fine, just need to pay attention to the board color and texture, as well as the requirements of size and thickness.

Choose Wood Material

Prepare Sampling Equipment & Materials

Prepare professional UV printing equipment and UV ink. For UV printing that requires personalized effects, special printing colors and other treatments are required.

Checking Materials

According to the design and selected print wood material, UV printing is carried out. It needs to be checked and accepted after completion, and adjusted in time according to customer feedback.

Customer Acceptance

Customer Acceptance & Service

After printing is completed for samples, it would be sent for client’s approval. Once if there are any defects of the samples with approved design. Then sample would be re-arranged. During the approval stage, it is necessary for efficient communication and professional services.
