Short Description:
High speed concrete vibrator shaft with 12000rpm, compatible with Enar and Bosch high frequency concrete vibrators. Low-noise functioning that is stable. Work in repair, road construction, personal house, major structures, airports, roads, and so forth. Low noise, steady operation, good mechanical and anti-wear performance.
Product Name: High Speed type Turkey type Concrete vibrator shaft
Head size: Vibrator head is from 35mm/38mm//45mm/50mm
Material of hose: Rubber hose base on 65Mn steel ling with 16~18mm width and 1.75mm thickness ,the hardness is 80~90 degree and 1000~1100n tension

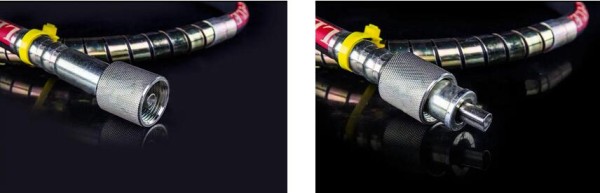

Material of flexible shaft: The torsional of flexible hose is 65N.m with 5~7 layers and 65MN steel
Quality control: For Flexible hose, ACE MACHINERY has done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly
| Item | High-frequency concrete vibrator shaft | |||||
| Model | ￠(mm) | ZX-35 | ZX-38 | ZX-40 | ZX-45 | ZX-48 |
| Diameter of head | ￠(mm) | 35 | 38 | 40 | 45 | 48 |
| Length of head | L (mm) | 330 | 380 | 335 | 390 | 335 |
| Vibrating Frequency | (HZ) | 200 | 200 | 200 | 200 | 200 |
| Vibrating Ampitude | (mm) | 0.91 | 1.1 | 1.2 | 1.2 | 1.3 |
| Diameter of flexiable hose | D(mm) | 30 | 30 | 30 | 30 | 30 |
| Diameter of flexiable shaft | D(mm) | 10 | 10 | 10 | 10 | 10 |

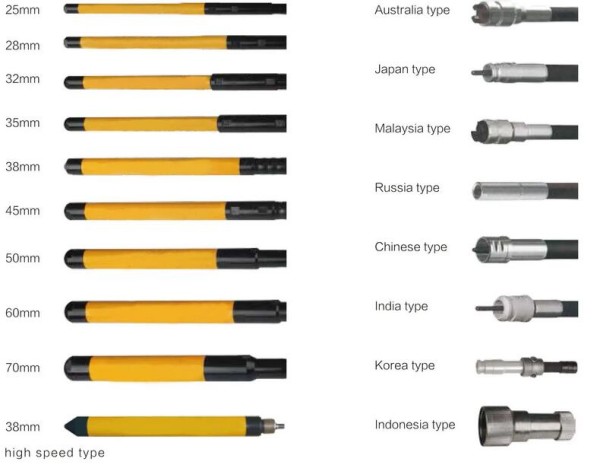

ACE company have produce many different type and models form 25mm/28mm/32mm/35mm/38mm/45mm/50mm/60mm/ 70mm/75mm,and differerent lengths almost from 1 to 12m for selection .
Guaranty of operation time: 200 hours
1. ACE MACHINERY can guarantee a 200-hour operation time for our concrete vibrator shaft.
2. If the concrete vibrator machine is broken or does not operate properly during the warranty period, ACE MACHINERY will replace the defective components (but not the worn parts) for free if the users follow the regulations of transportation, storage, and usage.
3. There is no accountability for man-made destruction.
4. ACE MACHINERY may provide online support if the buyer has any technical inquiries regarding our items.

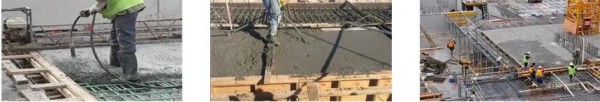

It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool. stable operation/good mechanical performance/low noise/good anti-wear performance
Customization : OEM & ODM customized design , ACE MACHINERY can change the color/logo according to people’s personal requirements.
All our products have the certification which need in all over the world, ACE MACHINERY can offer the CE certification as the basic and also the other which asking from them. ACE tools are approved by industry standards such as CE and CCC.
24 hours on-line service reply to customer questions.
