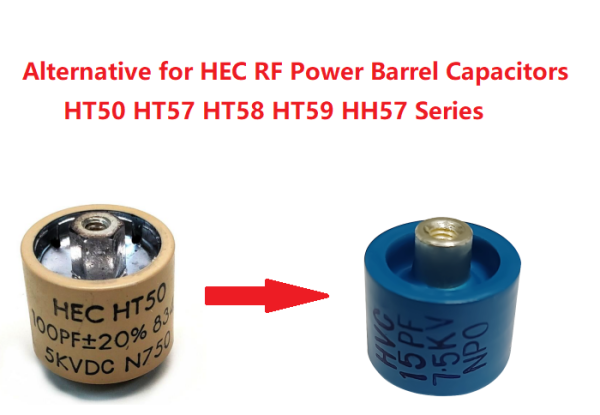

HEC’s HT50 HT57 series and Vishay TOS 030033 and TOS 020016 Series are major RF power barrel capacitors producers in the world. They are one of the main type of classic RF Power Capacitor(some called “doorknob capacitor). Major application is anticore antenna emission, high frequency dielectric heating, radio frequency power supply, medical equipment, radar, etc.
Covid19 Pandemic leads to European and American supply chain problem, many industrial products include High Energy Capacitor (HEC) and Vishsy-Draloric stop production and cause big shortage. Existing RF Capacitor user eagerly seeking for the HVC ‘s HVCHF series high voltage RF capacitor as alternative, HVCHF series HV HF Capacitor already approval by lots RF power supply, radar equipment manufacturer.
Such high-frequency ceramic capacitors can be traced back to 70 years ago, and USSR supports China’s construction of high level capacitor production line. After decades of production improvement, China’s ceramic dielectric powder suppliers developed world class dielectric material like NPO, N750, N4700, Y5T, X5U, etc. HVC Capacitor using these type of Class I and Class II dielectric build our brand of RF power barrel capacitor product. The main features are low loss, high reliability, and high rated voltages. HVC RF ceramic capacitor major application market are RF power supply, induction heating, medical equipment, gem smelting, and radar communication.
Following are HVCHF series of HVC’s HVCHF series one by one alternative replacement for HEC, RF Power Barrel Capacitors, HEC HT50, HEC HT57, HH57, HT58, HT59 series, and Vishay Draloric 5FAE, 7FAA, TOS 0300033, TOS 020016 series, HVC RF barrel small as a diameter of 20 mm, 30 mm, and 58 mm. Also welcome custom size design.
Know more to check: https://www.hv-caps.com/products/H-F-RF-Power-Capacitor/2021/1029/48927.html
|
HEC / Vishay Series |
HEC Part Number |
HVC Alternative Part Number |
Capacitance |
Dielectric (TC) |
VMAX (DC) |
Diameter(mm) |
|
HEC HT50 |
HT50V100KA |
HVCHF-A-10P-7.5KV |
10 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V150KA |
HVCHF-A-15P-7.5KV |
15 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V250KA |
HVCHF-A-25P-7.5KV |
25 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V300KA |
HVCHF-A-30P-7.5KV |
30 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V350KA |
HVCHF-A-35P-7.5KV |
35 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V400KA |
HVCHF-A-40P-7.5KV |
40 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V450KA |
HVCHF-A-45P-7.5KV |
45 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V500KA |
HVCHF-A-50P-7.5KV |
50 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V550KA |
HVCHF-A-55P-7.5KV |
55 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V600KA |
HVCHF-A-60P-7.5KV |
60 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V650KA |
HVCHF-A-65P-7.5KV |
65 pF |
NP0 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V750KA |
HVCHF-A-75P-7.5KV |
75 pF |
N750 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V101KA |
HVCHF-A-101-7.5KV |
100 pF |
N750 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V151KA |
HVCHF-A-151-7.5KV |
150 pF |
N750 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V171KA |
HVCHF-A-171-7.5KV |
170 pF |
N750 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V201KA |
HVCHF-A-201-7.5KV |
200 pF |
N4700 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V301KA |
HVCHF-A-301-7.5KV |
300 pF |
N4700 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V401KA |
HVCHF-A-401-7.5KV |
400 pF |
N4700 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V501KA |
HVCHF-A-501-7.5KV |
500 pF |
N4700 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V601KA |
HVCHF-A-601-7.5KV |
600 pF |
N4700 |
7.5 kV |
20 |
|
HEC HT50 |
HT50V701KA |
HVCHF-A-701-7.5KV |
700 pF |
N4700 |
7.5 kV |
20 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
HEC HT58 |
HT58V400KA |
HVCHF-A-UJ-40P-7.5KV |
40 pF |
N750 |
7.5 kV |
20 |
|
HEC HT58 |
HT58V500KA |
HVCHF-A-UJ-50P-7.5KV |
50 pF |
N750 |
7.5 kV |
20 |
|
HEC HT58 |
HT58V600KA |
HVCHF-A-UJ-60P-7.5KV |
60 pF |
N750 |
7.5 kV |
20 |
|
HEC HT58 |
HT58V650KA |
HVCHF-A-UJ-65P-7.5KV |
65 pF |
N750 |
7.5 kV |
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEC HT57 |
HT57Y100KA |
HVCHF-B-10P-15KV |
10 pF |
NP0 |
15 kV |
30 |
|
HEC HT57 |
HT57Y250KA |
HVCHF-B-25P-15KV |
25 pF |
NP0 |
15 kV |
30 |
|
HEC HT57 |
HT57Y500KA |
HVCHF-B-50P-15KV |
50 pF |
NP0 |
15 kV |
30 |
|
HEC HT57 |
HT57Y600KA |
HVCHF-B-60P-15KV |
60 pF |
NP0 |
15 kV |
30 |
|
HEC HT57 |
HT57Y750KA |
HVCHF-B-75P-15KV |
75 pF |
N750 |
15 kV |
30 |
|
HEC HT57 |
HT57Y101KA |
HVCHF-B-101-15KV |
100 pF |
N750 |
15 kV |
30 |
|
HEC HT57 |
HT57Y151KA |
HVCHF-B-151-15KV |
150 pF |
N750 |
15 kV |
30 |
|
HEC HT57 |
HT57Y201KA |
HVCHF-B-201-15KV |
200 pF |
N750 |
15 kV |
30 |
|
HEC HT57 |
HT57Y251KA |
HVCHF-B-251-15KV |
250 pF |
N4700 |
15 kV |
30 |
|
HEC HT57 |
HT57Y301KA |
HVCHF-B-301-15KV |
300 pF |
N4700 |
15 kV |
30 |
|
HEC HT57 |
HT57Y401KA |
HVCHF-B-401-15KV |
400 pF |
N4700 |
15 kV |
30 |
|
HEC HT57 |
HT57Y501KA |
HVCHF-B-501-15KV |
500 pF |
N4700 |
15 kV |
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEC HT59 |
HT594500MA |
HVCHF-C-50P-25KV |
50 pF |
NP0 |
25 kV |
58 |
|
HEC HT59 |
HT594750MA |
HVCHF-C-75P-25KV |
75 pF |
NP0 |
25 kV |
58 |
|
HEC HT59 |
HT594101MA |
HVCHF-C-101-25KV |
100 pF |
NP0 |
25 kV |
58 |
|
HEC HT59 |
HT594131MA |
HVCHF-C-131-25KV |
130 pF |
NP0 |
25 kV |
58 |
|
HEC HT59 |
HT594151MA |
HVCHF-C-151-25KV |
150 pF |
N750 |
25 kV |
58 |
|
HEC HT59 |
HT594201MA |
HVCHF-C-201-25KV |
200 pF |
N750 |
25 kV |
58 |
|
HEC HT59 |
HT594251MA |
HVCHF-C-251-25KV |
250 pF |
N750 |
25 kV |
58 |
|
HEC HT59 |
HT594301MA |
HVCHF-C-301-25KV |
300 pF |
N4700 |
25 kV |
58 |
|
HEC HT59 |
HT594501MA |
HVCHF-C-501-25KV |
500 pF |
N4700 |
25 kV |
58 |
|
HEC HT59 |
HT594701MA |
HVCHF-C-701-25KV |
700 pF |
N4700 |
25 kV |
58 |
|
HEC HT59 |
HT594801MA |
HVCHF-C-801-25KV |
800 pF |
N4700 |
25 kV |
58 |
|
HEC HT59 |
HT594102MA |
HVCHF-C-102-25KV |
1000 pF |
N4700 |
25 kV |
58 |
|
HEC HT59 |
HT594152MA |
HVCHF-C-152-25KV |
1500 pF |
N4700 |
25 kV |
58 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEC HT58 |
HH58V501KA |
HVCHF-A-X5T-501-7.5KV |
500 pF |
X5T |
7.5 kV |
20 |
|
HEC HT58 |
HH58V701KA |
HVCHF-A-X5T-701-7.5KV |
700 pF |
X5T |
7.5 kV |
20 |
|
HEC HT58 |
HH58V901KA |
HVCHF-A-X5T-901-7.5KV |
900 pF |
X5T |
7.5 kV |
20 |
|
HEC HT58 |
HH58V102KA |
HVCHF-A-X5V-102-7.5KV |
1000 pF |
X5V |
7.5 kV |
20 |
|
HEC HT58 |
HH58V202KA |
HVCHF-A-X5V-202-7.5KV |
2000 pF |
X5V |
7.5 kV |
20 |
|
HEC HT58 |
HH58V252KA |
HVCHF-A-X5U-252-7.5KV |
2500 pF |
X5U |
7.5 kV |
20 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
HEC HH57 |
HH57Y751KA |
HVCHF-B-X5T-751-15KV |
750 pF |
X5T |
15 kV |
30 |
|
HEC HH57 |
HH57Y102KA |
HVCHF-B-X5T-102-15KV |
1000 pF |
X5T |
15 kV |
30 |
|
HEC HH57 |
HH57Y122KA |
HVCHF-B-X5T-122-15KV |
1200 pF |
X5T |
15 kV |
30 |
|
HEC HH57 |
HH57Y152KA |
HVCHF-B-X5T-152-15KV |
1500 pF |
X5T |
15 kV |
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vishay 7FAA |
7FAA100K |
HVCHF-A-NP0-10P-7.5KV |
10 pF |
NP0 |
7.5 kV |
20 |
|
Vishay 7FAA |
7FAA200K |
HVCHF-A-NP0-20P-7.5KV |
20 pF |
NP0 |
7.5 kV |
20 |
|
Vishay 7FAA |
7FAA250K |
HVCHF-A-NP0-25P-7.5KV |
25 pF |
NP0 |
7.5 kV |
20 |
|
Vishay 7FAA |
7FAA300K |
HVCHF-A-NP0-30P-7.5KV |
30 pF |
NP0 |
7.5 kV |
20 |
|
Vishay 7FAA |
7FAA500K |
HVCHF-A-NP0-50P-7.5KV |
50 pF |
NP0 |
7.5 kV |
20 |
|
Vishay 7FAU |
7FAU750K |
HVCHF-A-N750-75P-7.5KV |
75 pF |
N750 |
7.5 kV |
20 |
|
Vishay 7FAU |
7FAU101K |
HVCHF-A-N750-100P-7.5KV |
100 pF |
N750 |
7.5 kV |
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vishay 5FAE |
5FAE501M |
HVCHF-A-X5U-501-5KV |
500 pF |
X5U |
5 kV |
20 |
|
Vishay 5FAE |
5FAE801M |
HVCHF-A-X5U-801-5KV |
800 pF |
X5U |
5 kV |
20 |
|
Vishay 5FAE |
5FAE102M |
HVCHF-A-X5U-102-5KV |
1000 pF |
X5U |
5 kV |
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vishay TOS 030033 |
BS030033BJ10036AC1 |
HVCHF-B-NP0-10P-15KV |
10 pF |
NP0 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ25036AC1 |
HVCHF-B-NP0-25P-15KV |
25 pF |
NP0 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ50036AC1 |
HVCHF-B-NP0-50P-15KV |
50 pF |
NP0 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ75036AL1 |
HVCHF-B-N750-75P-15KV |
75 pF |
N750 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ10136AL1 |
HVCHF-B-N750-100P-15KV |
100 pF |
N750 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ15136AL1 |
HVCHF-B-N750-151-15KV |
150 pF |
N750 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ20136AL1 |
HVCHF-B-N750-201-15KV |
200 pF |
N750 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ30136AQ1 |
HVCHF-B-N4700-301-15KV |
300 pF |
N4700 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ40136AQ1 |
HVCHF-B-N4700-401-15KV |
400 pF |
N4700 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ50136AQ1 |
HVCHF-B-N4700-501-15KV |
500 pF |
N4700 |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ75138AV1 |
HVCHF-B-X7R-751-15KV |
750 pF |
X7R |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ10238AV1 |
HVCHF-B-X7R-102-15KV |
1000 pF |
X7R |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ12238AV1 |
HVCHF-B-X7R-122-15KV |
1200 pF |
X7R |
15 kV |
30 |
|
Vishay TOS 030033 |
BS030033BJ15238AV1 |
HVCHF-B-X7R-152-15KV |
1500 pF |
X7R |
15 kV |
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vishay TOS 020016 |
BS020016VZ10036AC1 |
HVCHF-B1-NP0-10P-7.5KV |
10 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ15036AC1 |
HVCHF-B1-NP0-15P-7.5KV |
15 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ25036AC1 |
HVCHF-B1-NP0-25P-7.5KV |
25 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ30036AC1 |
HVCHF-B1-NP0-30P-7.5KV |
30 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ40036AC1 |
HVCHF-B1-NP0-40P-7.5KV |
40 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ50036AC1 |
HVCHF-B1-NP0-50P-7.5KV |
50 pF |
NP0 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ75036AL1 |
HVCHF-B1-N750-75P-7.5KV |
75 pF |
N750 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ10136AL1 |
HVCHF-B1-N750-100P-7.5KV |
100 pF |
N750 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ15136AS1 |
HVCHF-B1-N4700-151-7.5KV |
150 pF |
N4700 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ20136AS1 |
HVCHF-B1-N4700-201-7.5KV |
200 pF |
N4700 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ30136AS1 |
HVCHF-B1-N4700-301-7.5KV |
300 pF |
N4700 |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ40138AT1 |
HVCHF-B1-X7R-401-7.5KV |
400 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ50138AT1 |
HVCHF-B1-X7R-501-7.5KV |
500 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ60138AU1 |
HVCHF-B1-X7R-601-7.5KV |
600 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ80138AU1 |
HVCHF-B1-X7R-801-7.5KV |
800 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ10238AV1 |
HVCHF-B1-X7R-102-7.5KV |
1000 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ15238AV1 |
HVCHF-B1-X7R-152-7.5KV |
1500 pF |
X7R |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ20238BA1 |
HVCHF-B1-E-202-7.5KV |
2000 pF |
Y5U |
7.5 kV |
21 |
|
Vishay TOS 020016 |
BS020016VZ25238BA1 |
HVCHF-B1-E-252-7.5KV |
2500 pF |
Y5U |
7.5 kV |
21 |
